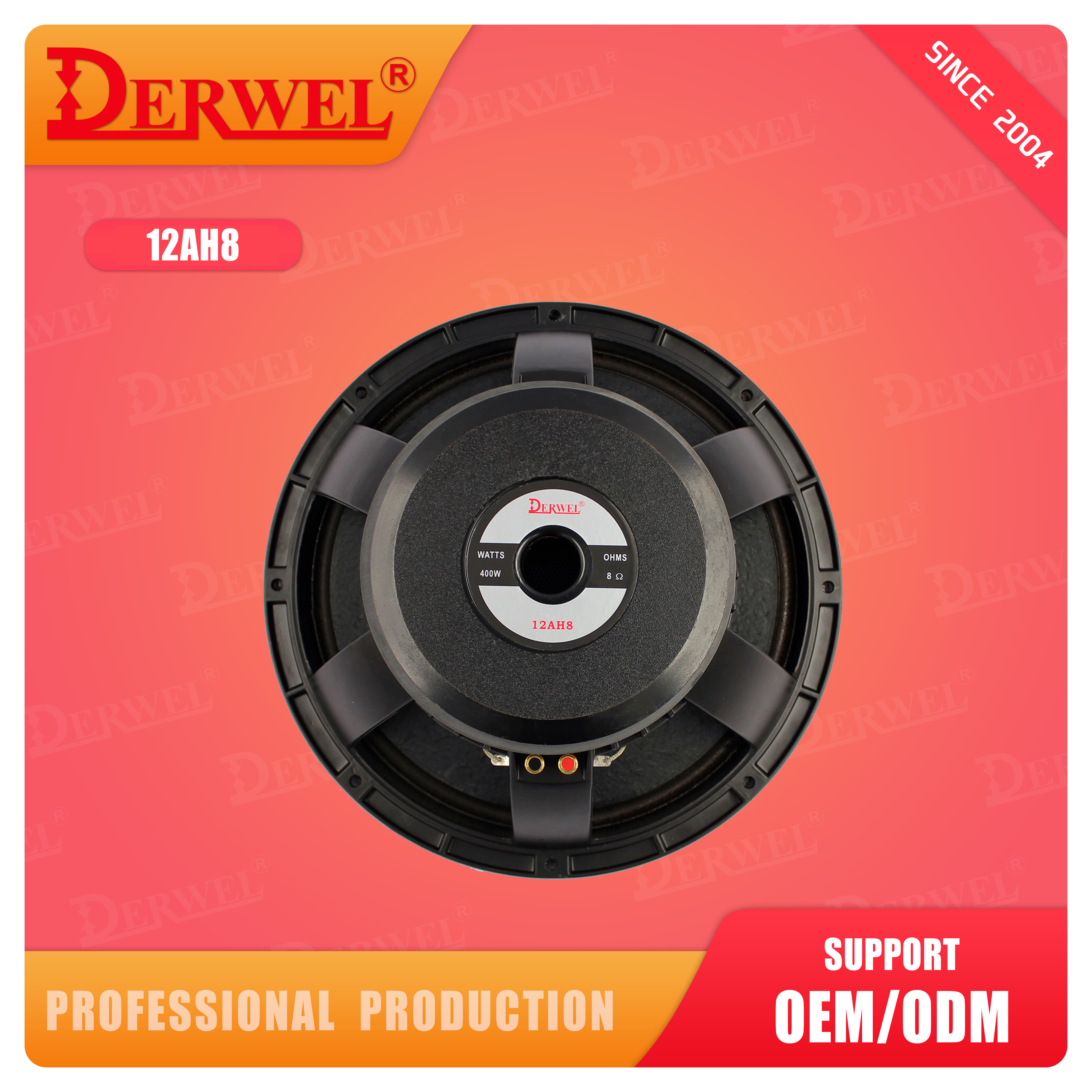

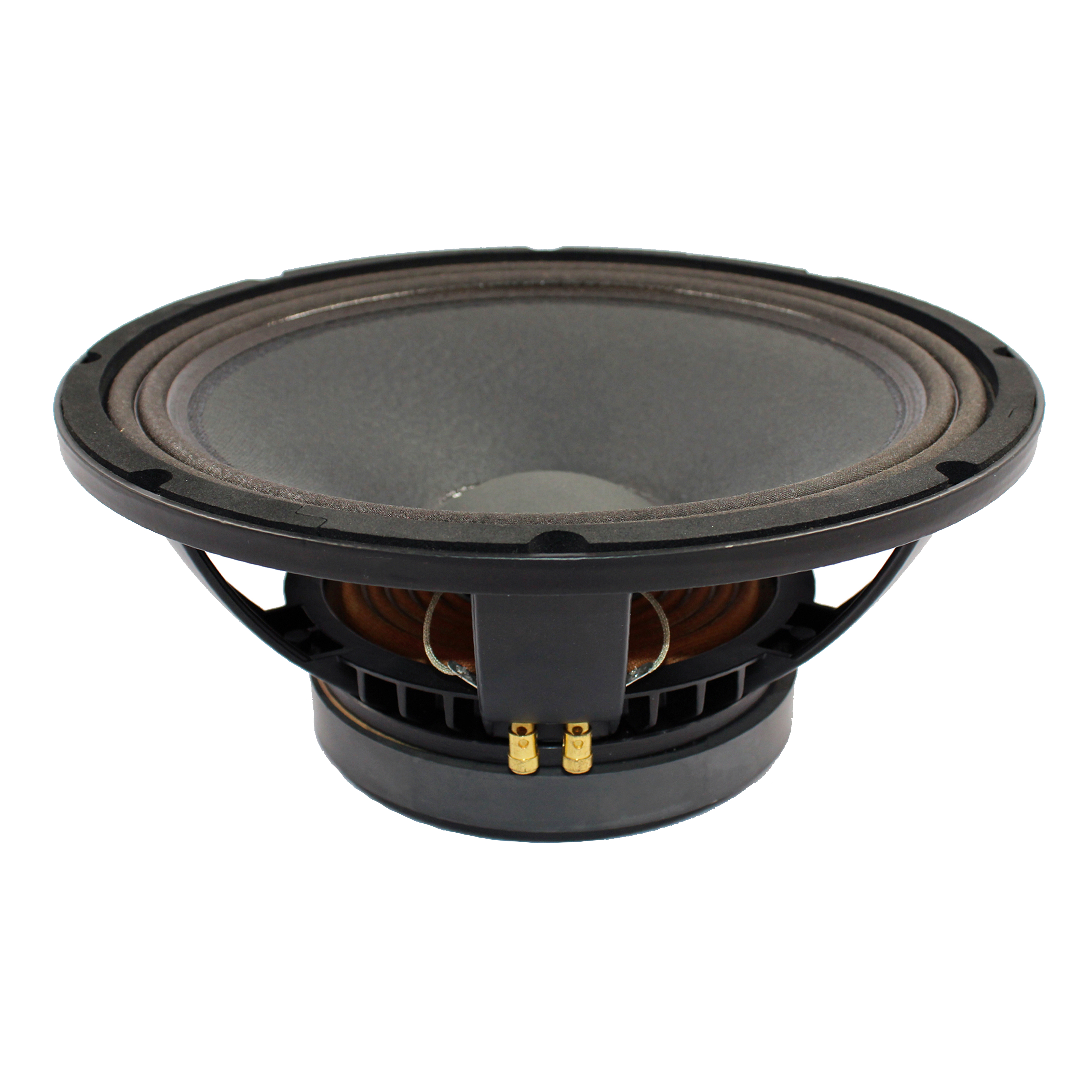

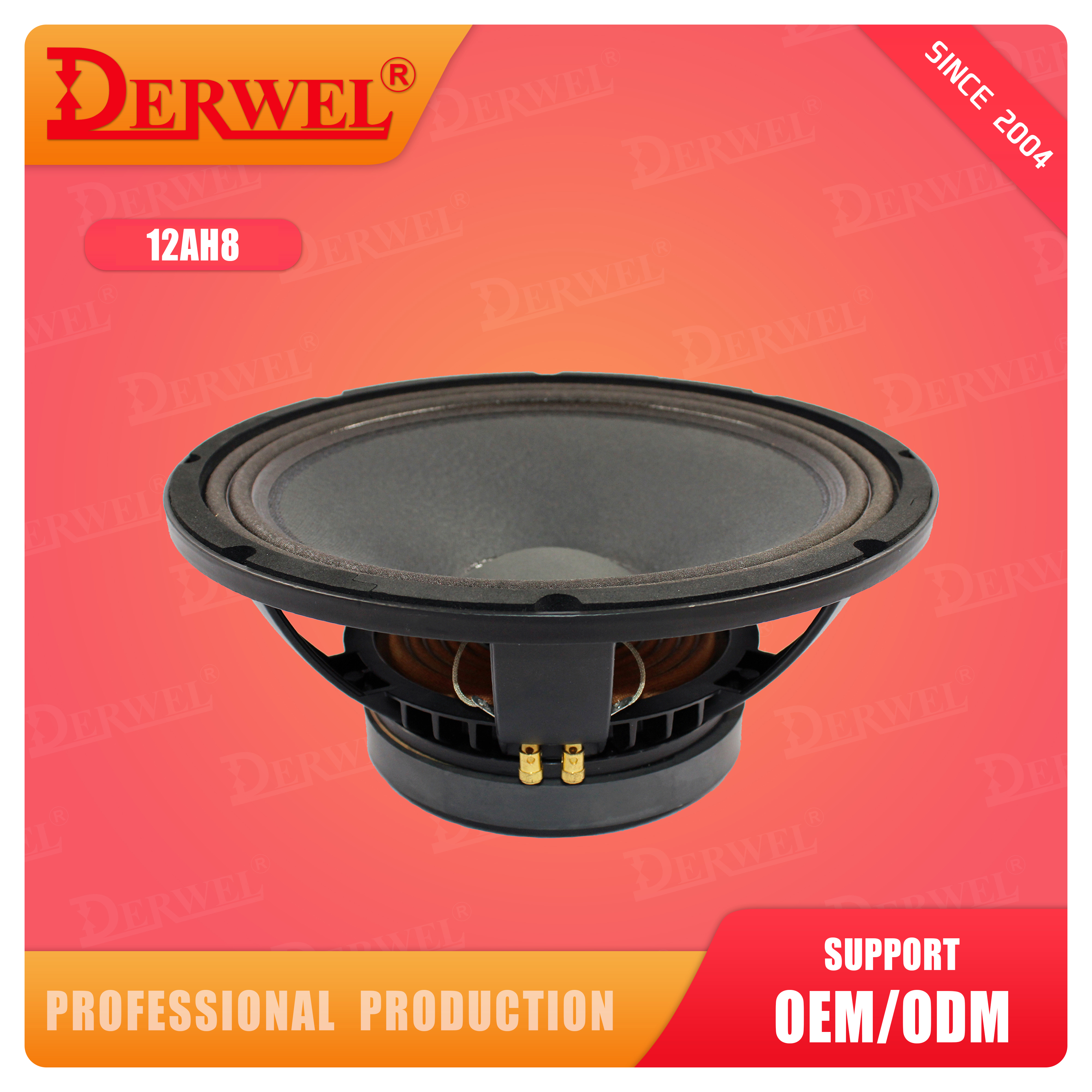

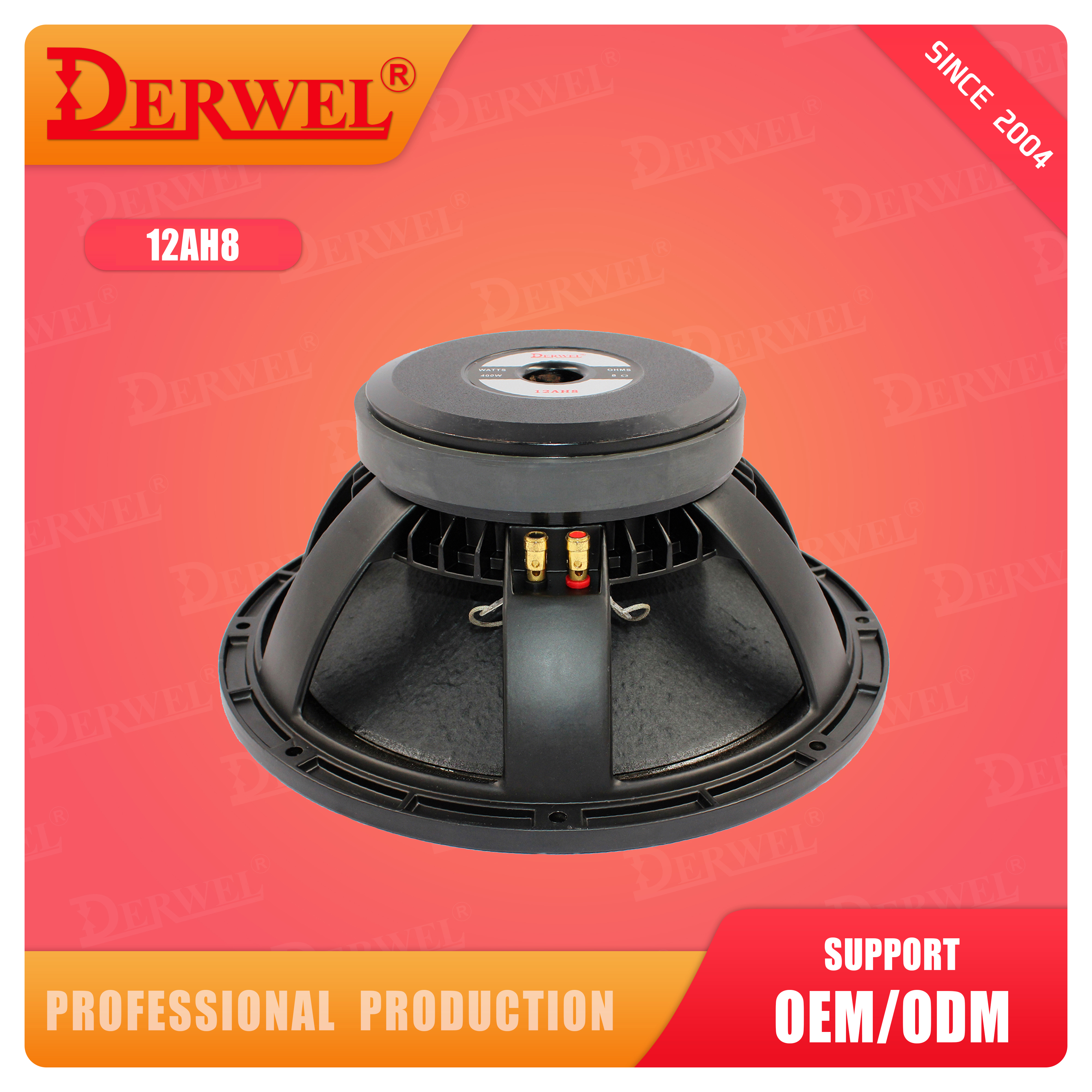

GENERAL SPECIFICATIONS
|
Nominal Diameter |
12 |
Inch |
|
|
Rated Impedance |
8 |
Ω |
|
|
Power Handling Capacity |
400 |
Watts |
|
|
Sensitivity 1W 1M |
96.0 |
dB |
|
|
Effective Piston Diameter |
260 |
mm |
|
|
Voice Coil Diameter |
65.5 |
mm |
2.5 Inch |
THIELE-SMALL PARAMENTERS
|
Resonance Frequency |
Fs |
52 |
Hz |
|
DC Resistance |
Re |
6.5 |
Ω |
|
Mechanical Q Factor |
Qms |
6.000 |
|
|
Electrical Q Factor |
Qes |
0.364 |
|
|
Total Q Factor |
Qts |
0.343 |
|
|
BL Factor |
BL |
18.157 |
TM |
|
Effective Moving Mass |
Mms |
56.425 |
gr |
|
Equivalent Cas Air Load |
Vas |
66.210 |
liters |
|
Effective Piston Area |
Sd |
0.053 |
㎡ |
|
Half-Space Efficiency |
Eff |
2.8 |
% |
|
Top Palte Thickness |
Hag |
8 |
mm |
|
Voice Coil Height |
Hvc |
16 |
mm |
|
Voice Coil Over-Hung |
Xmax |
6.0 |
mm |

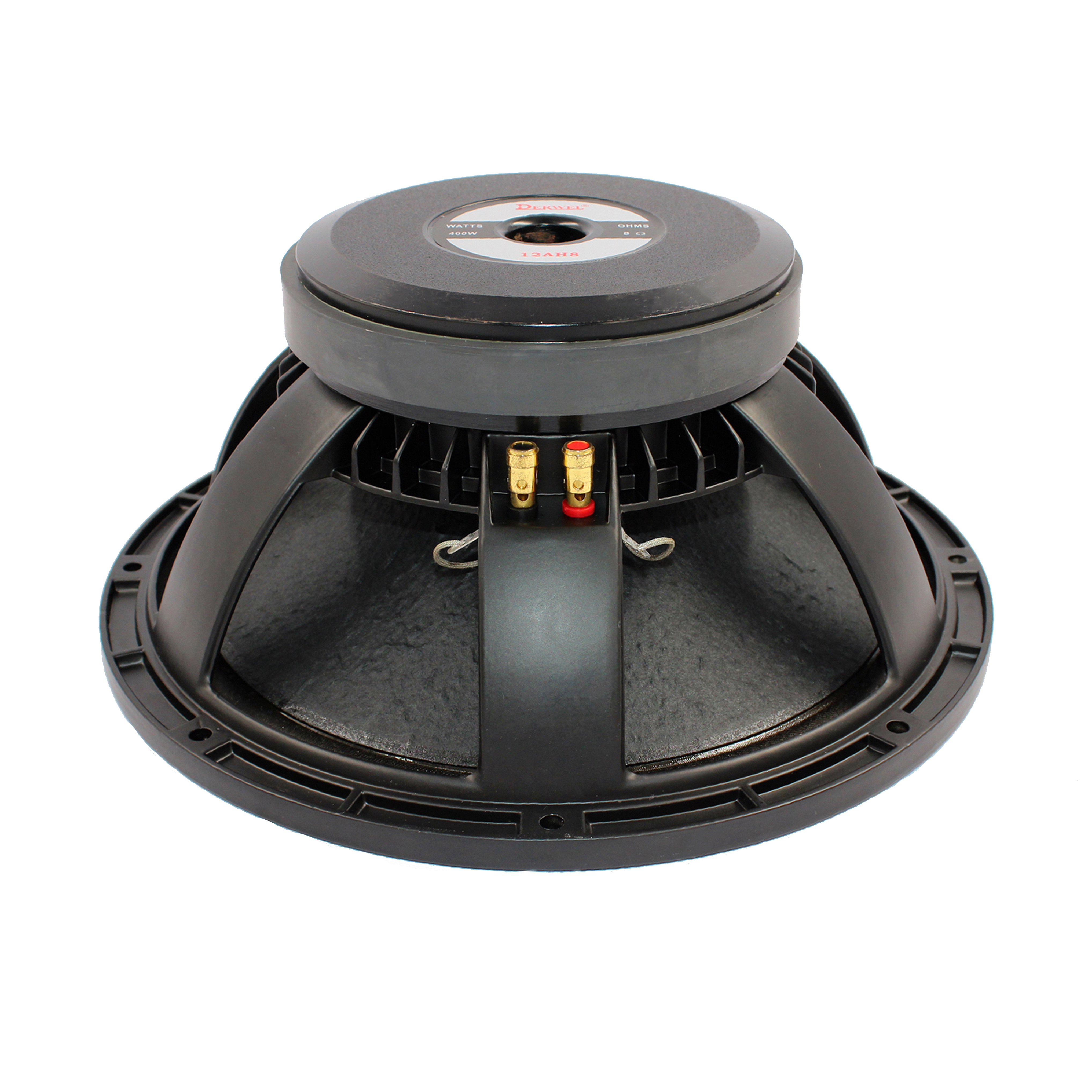

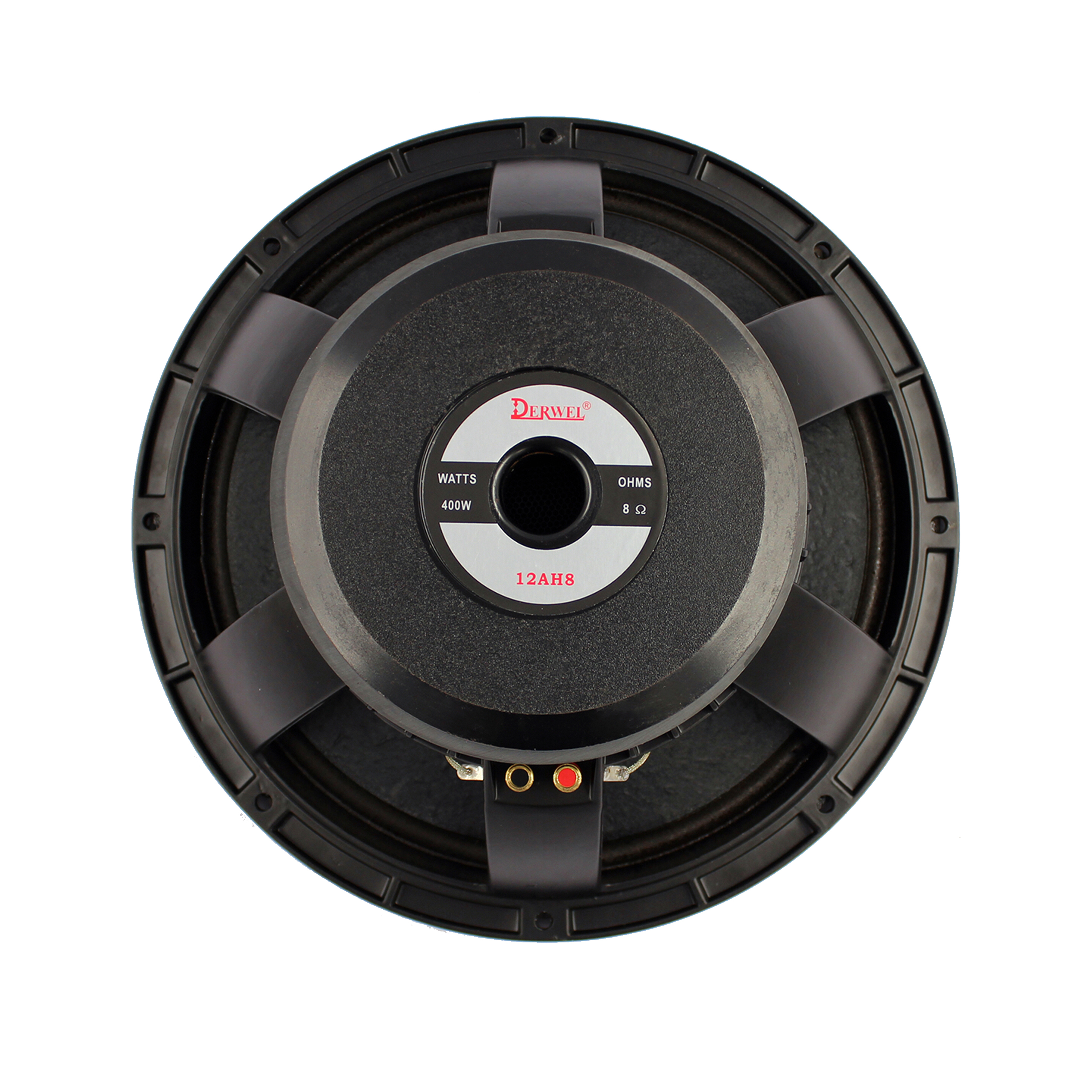

PHYSICAL INFORMATION
|
Magnet |
170×85×20 Ferrite |
|

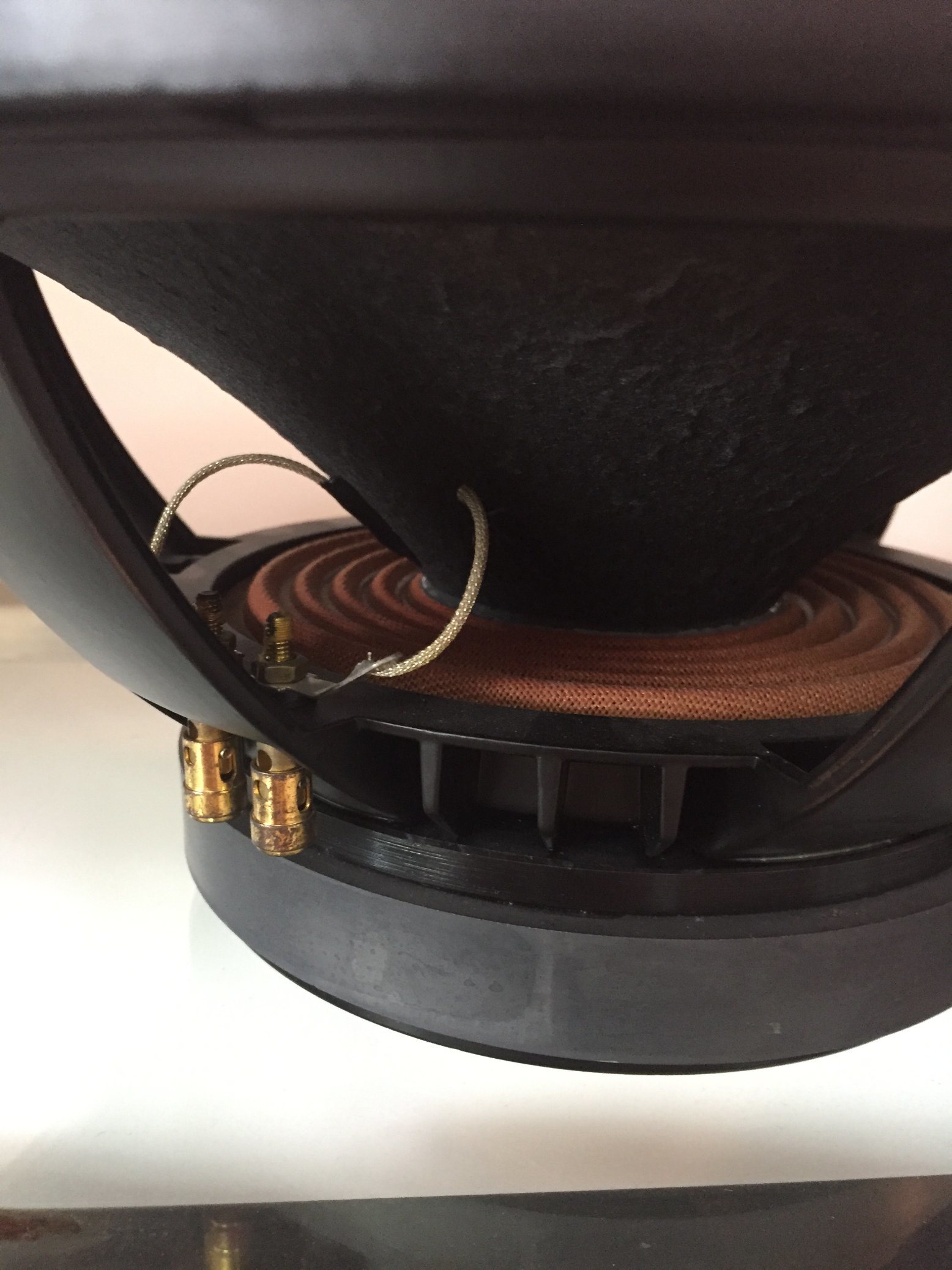

Voice Coil Winding Material |
Copper |
|

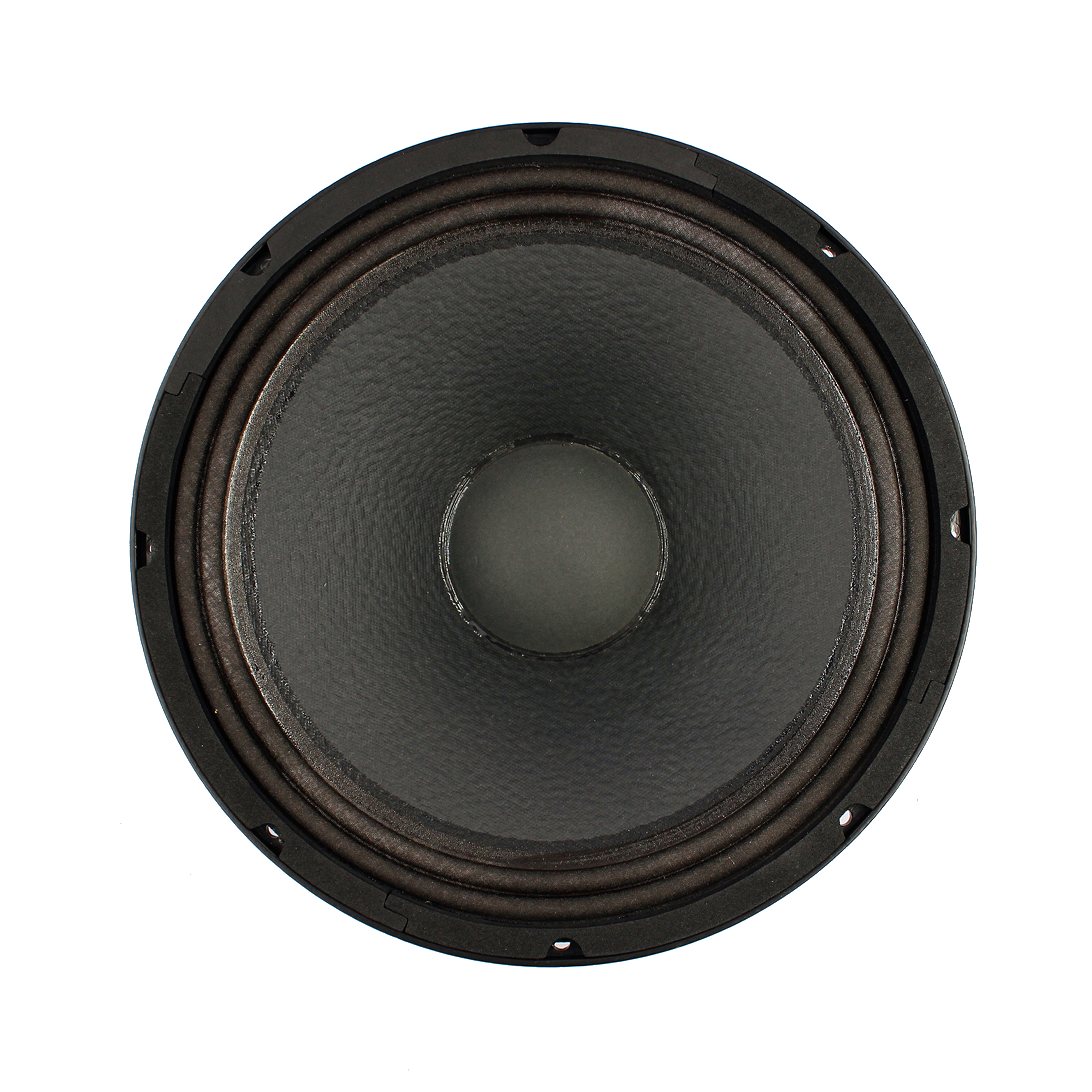

Cone Material |
Pulp Paper |
|
Overall Diamete |
312mm |
|
Baffle Cutout Diameter |
278.5mm |
|
Mounting Holes |
8 holes ∅ 300mm |
|
Total Depth |
140mm |
