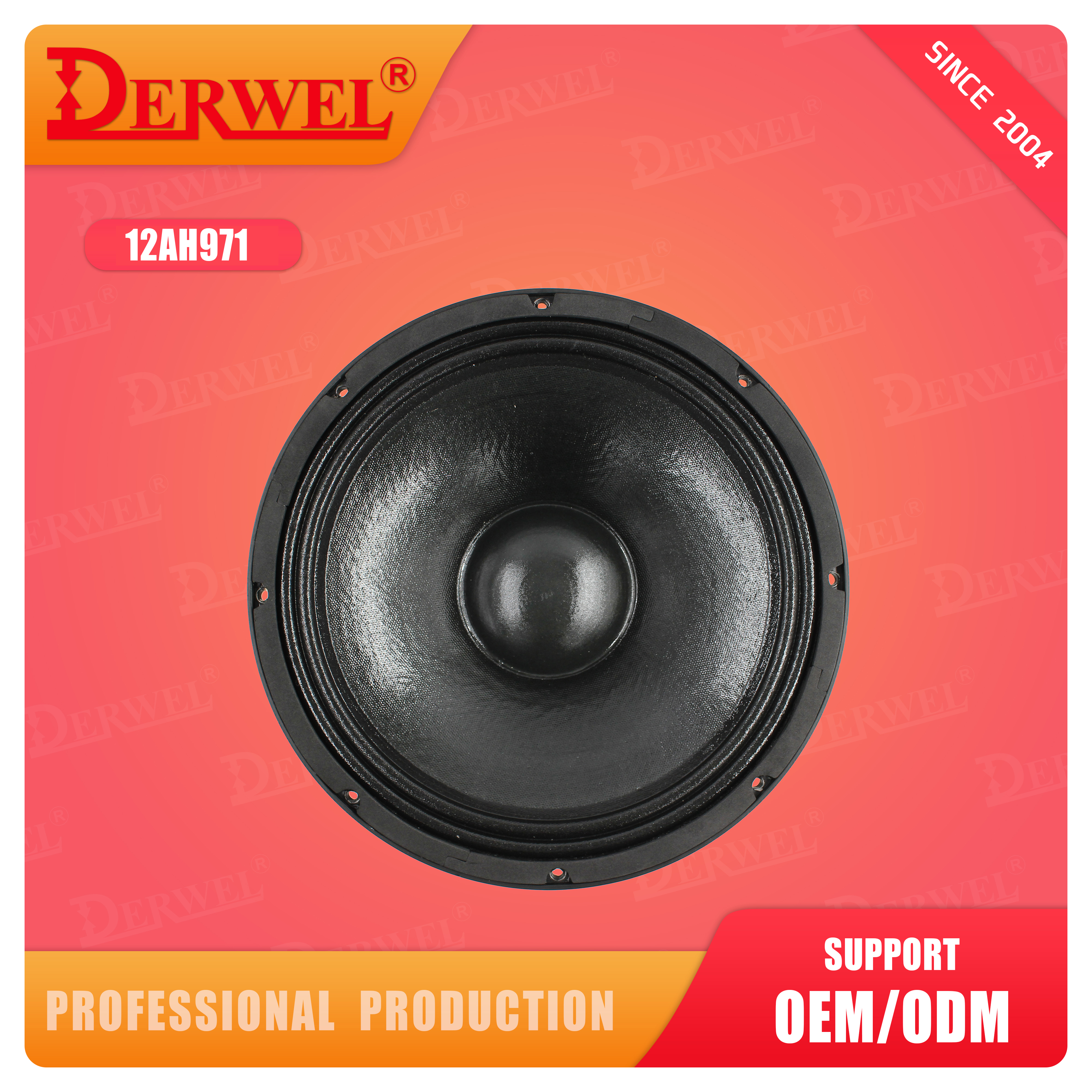

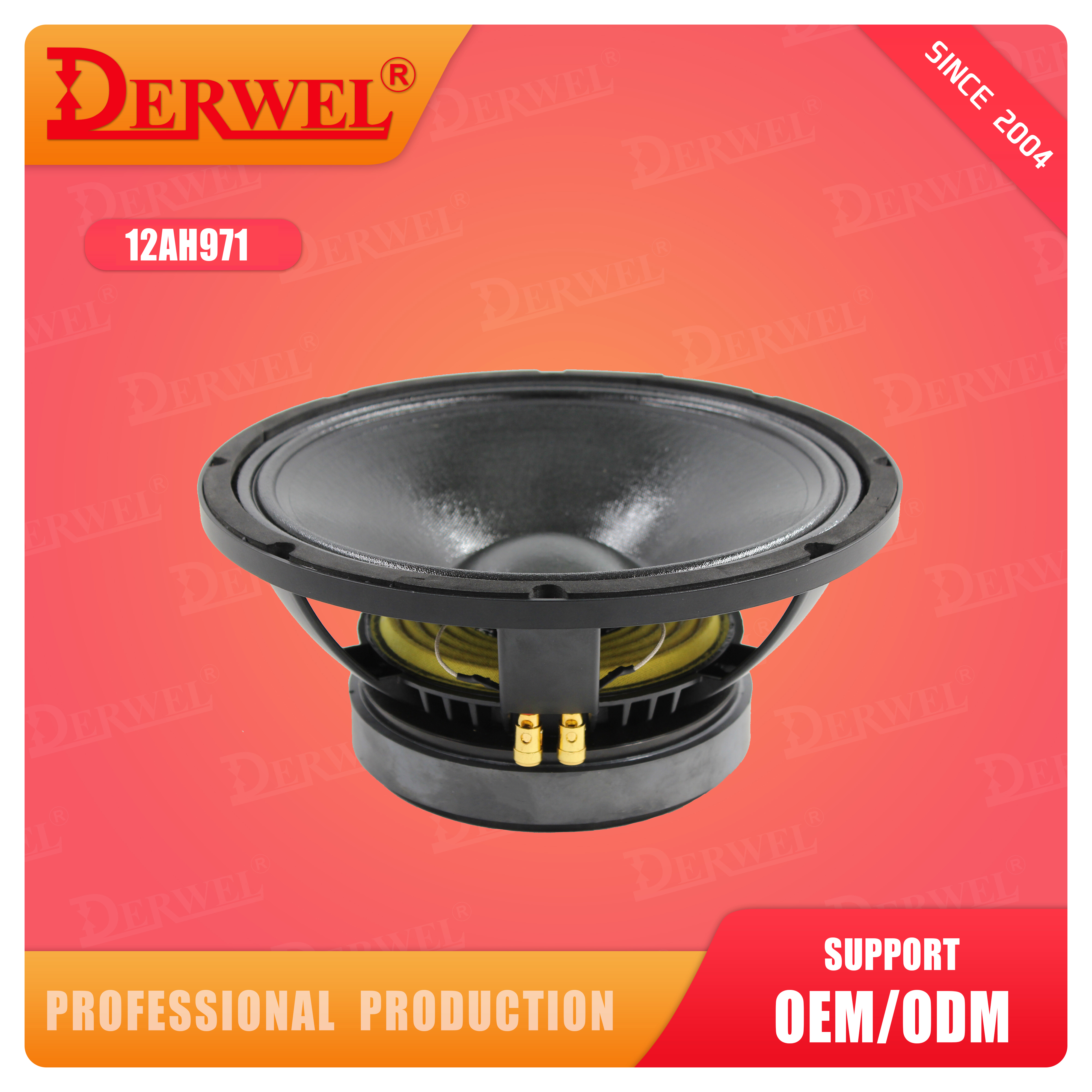

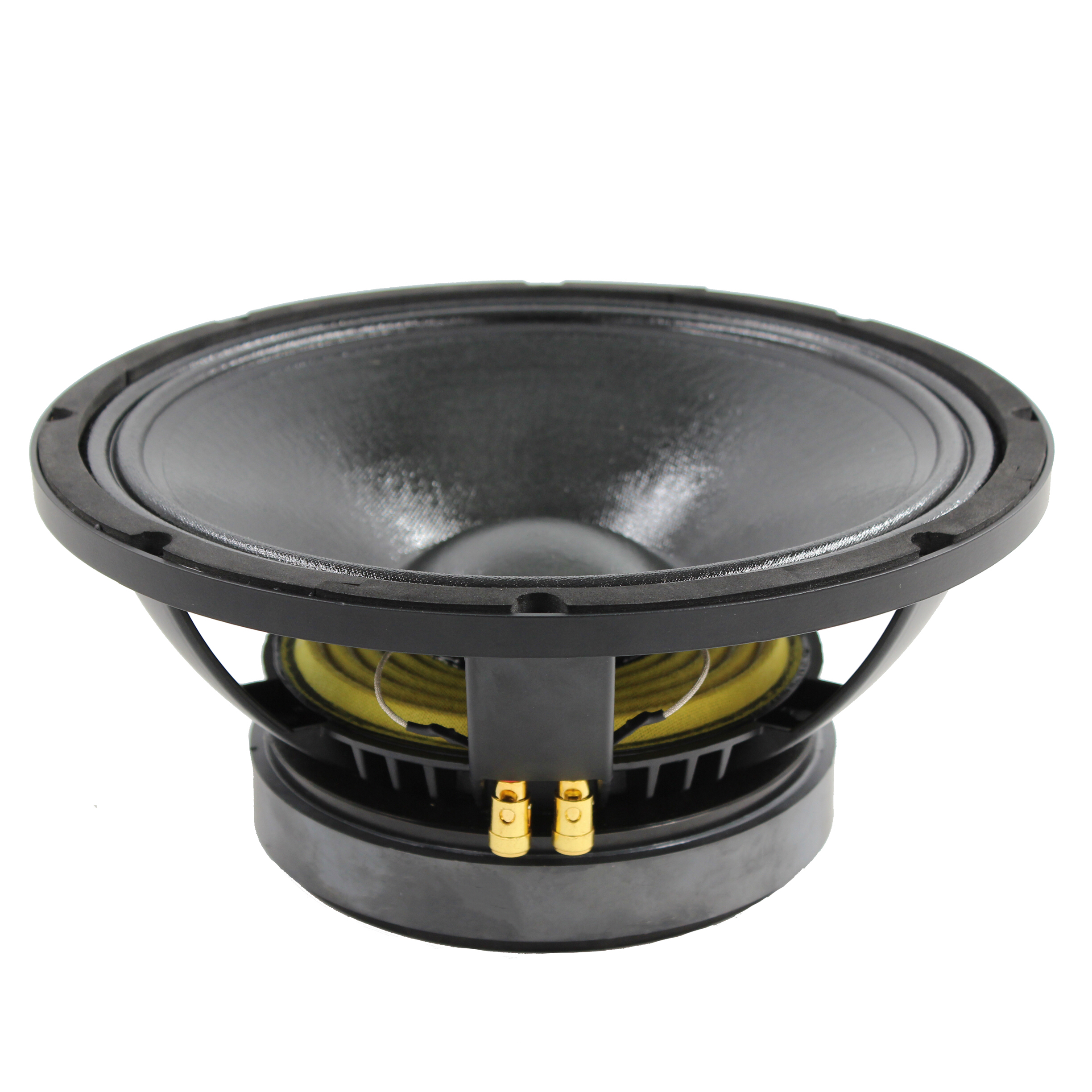

GENERAL SPECIFICATIONS
|
Nominal Diameter |
12 |
Inch |
|
|
Rated Impedance |
8 |
Ω |
|
|
Power Handling Capacity |
600 |
Watts |
|
|
Sensitivity 1W 1M |
95.3 |
dB |
|
|
Effective Piston Diameter |
260 |
mm |
|
|
Voice Coil Diameter |
75.5 |
mm |
3 Inch |
THIELE-SMALL PARAMENTERS
|
Resonance Frequency |
Fs |
53 |
Hz |
|
DC Resistance |
Re |
5.8 |
Ω |
|
Mechanical Q Factor |
Qms |
7.647 |
|
|
Electrical Q Factor |
Qes |
0.522 |
|
|
Total Q Factor |
Qts |
0.488 |
|
|
BL Factor |
BL |
16.799 |
TM |
|
Effective Moving Mass |
Mms |
59.922 |
gr |
|
Equivalent Cas Air Load |
Vas |
37.246 |
liters |
|
Effective Piston Area |
Sd |
0.053 |
㎡ |
|
Half-Space Efficiency |
Eff |
2.115 |
% |
|
Top Palte Thickness |
Hag |
10 |
mm |
|
Voice Coil Height |
Hvc |
16 |
mm |
|
Voice Coil Over-Hung |
Xmax |
8.0 |
mm |
PHYSICAL INFORMATION
|

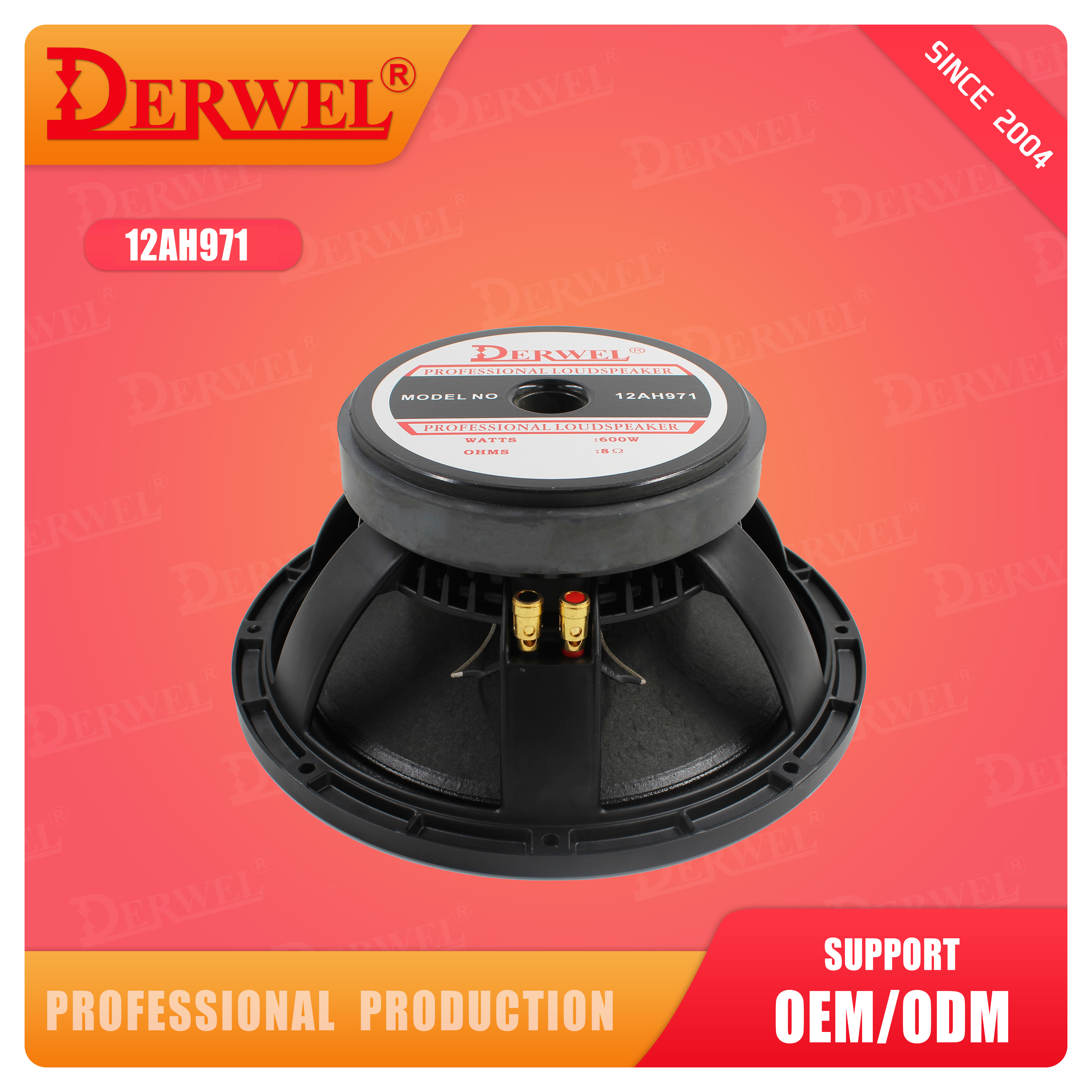

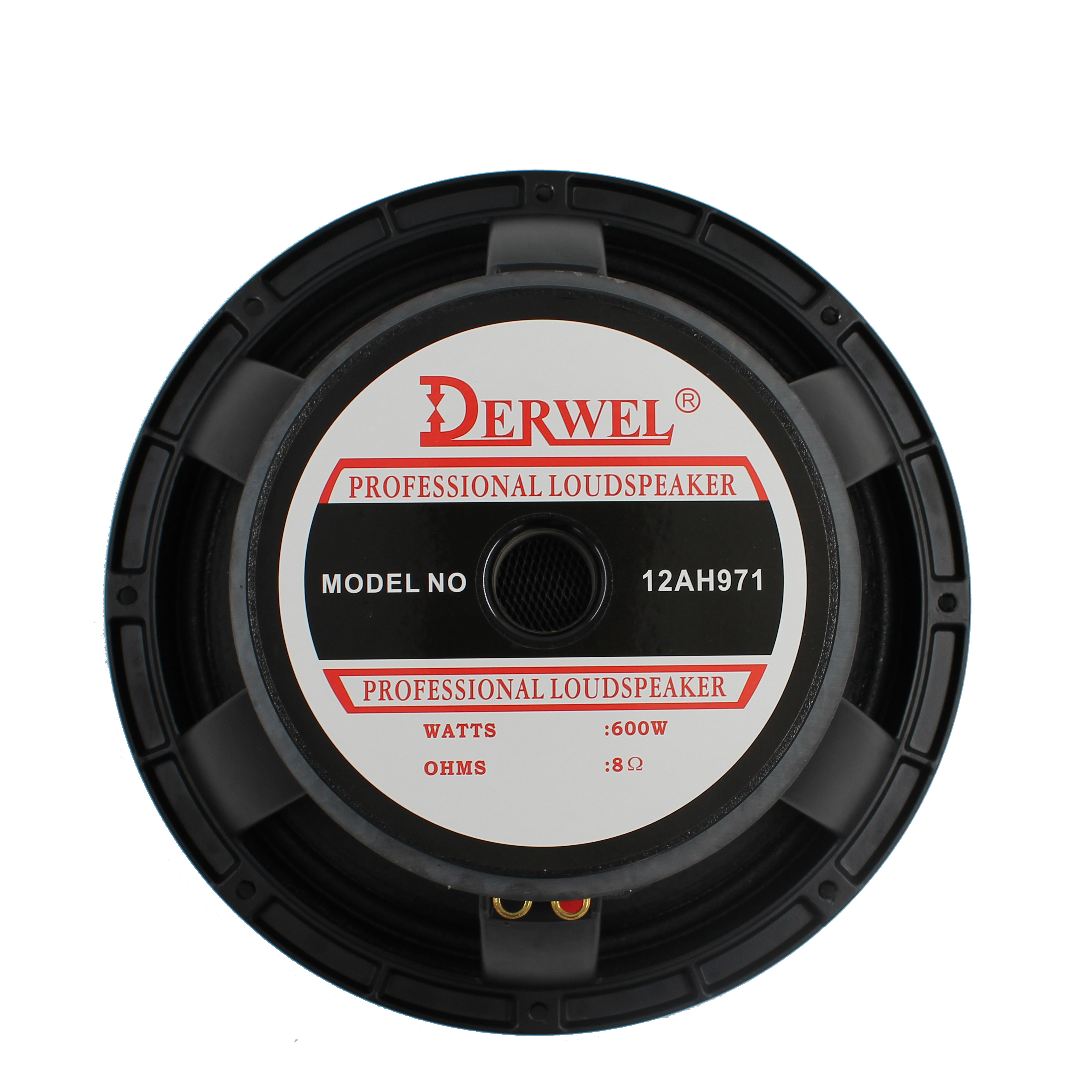

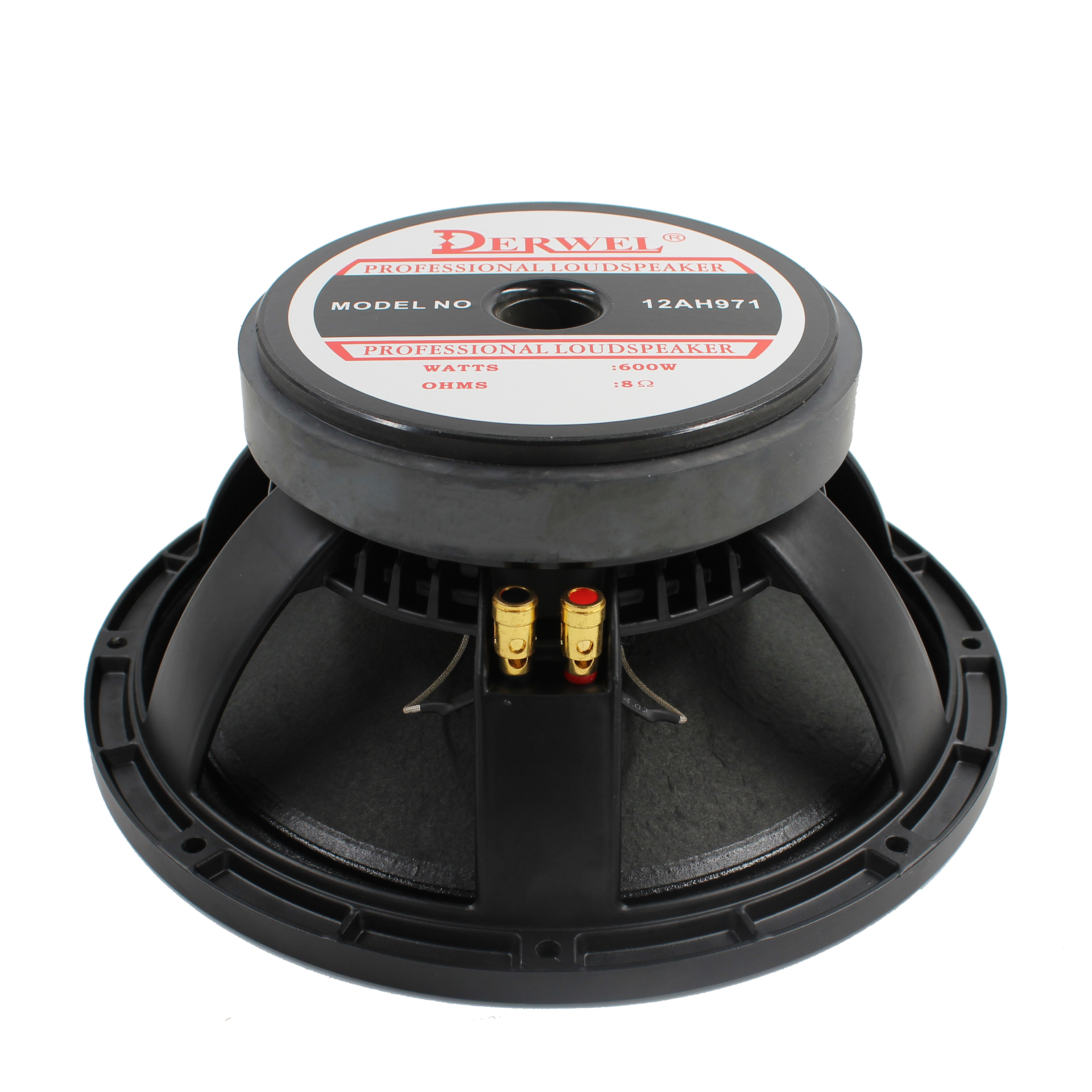

Magnet |
190×90×25 Ferrite |
|

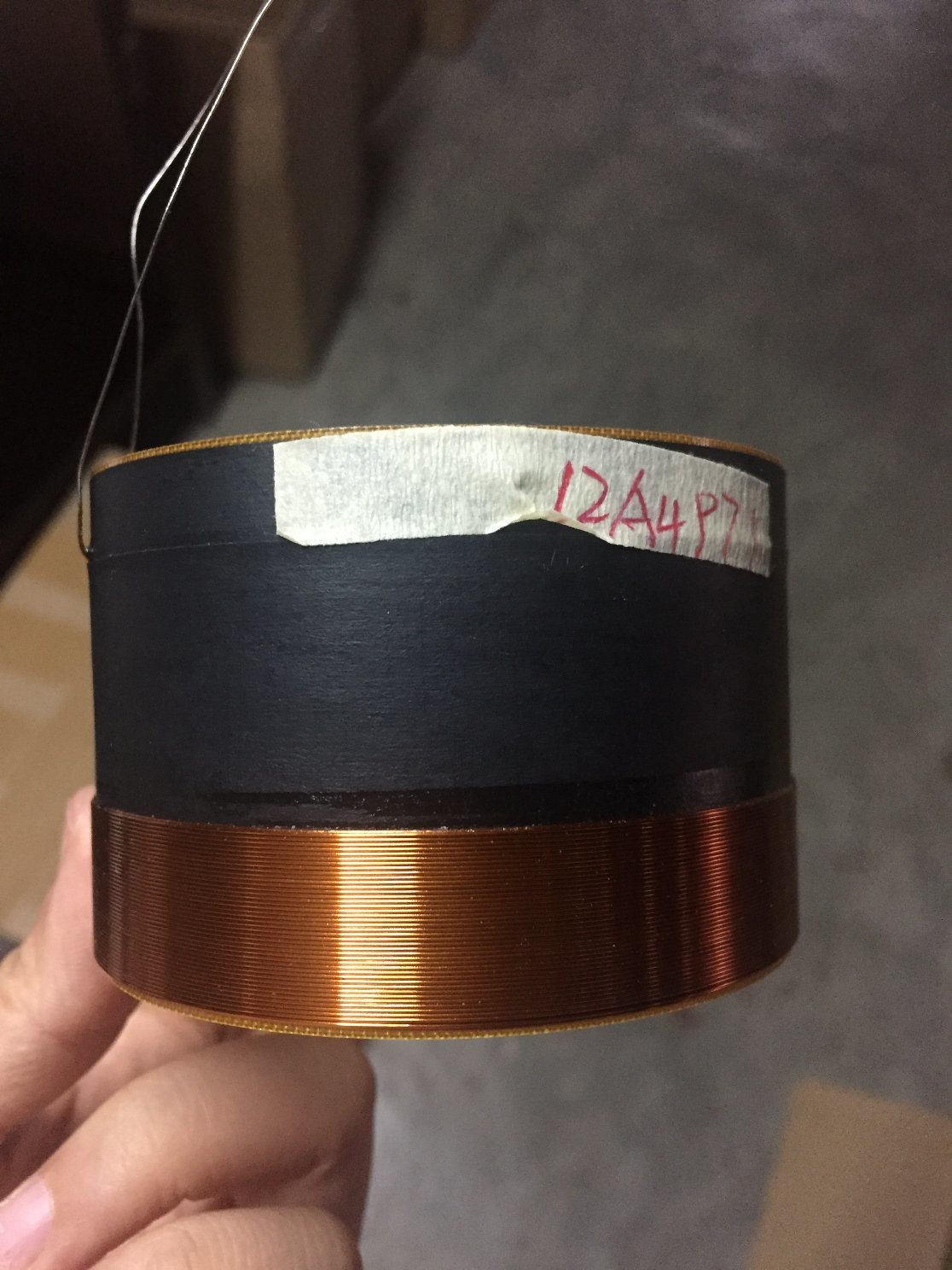

Voice Coil Winding Material |
Copper Clad Aluminium |
|

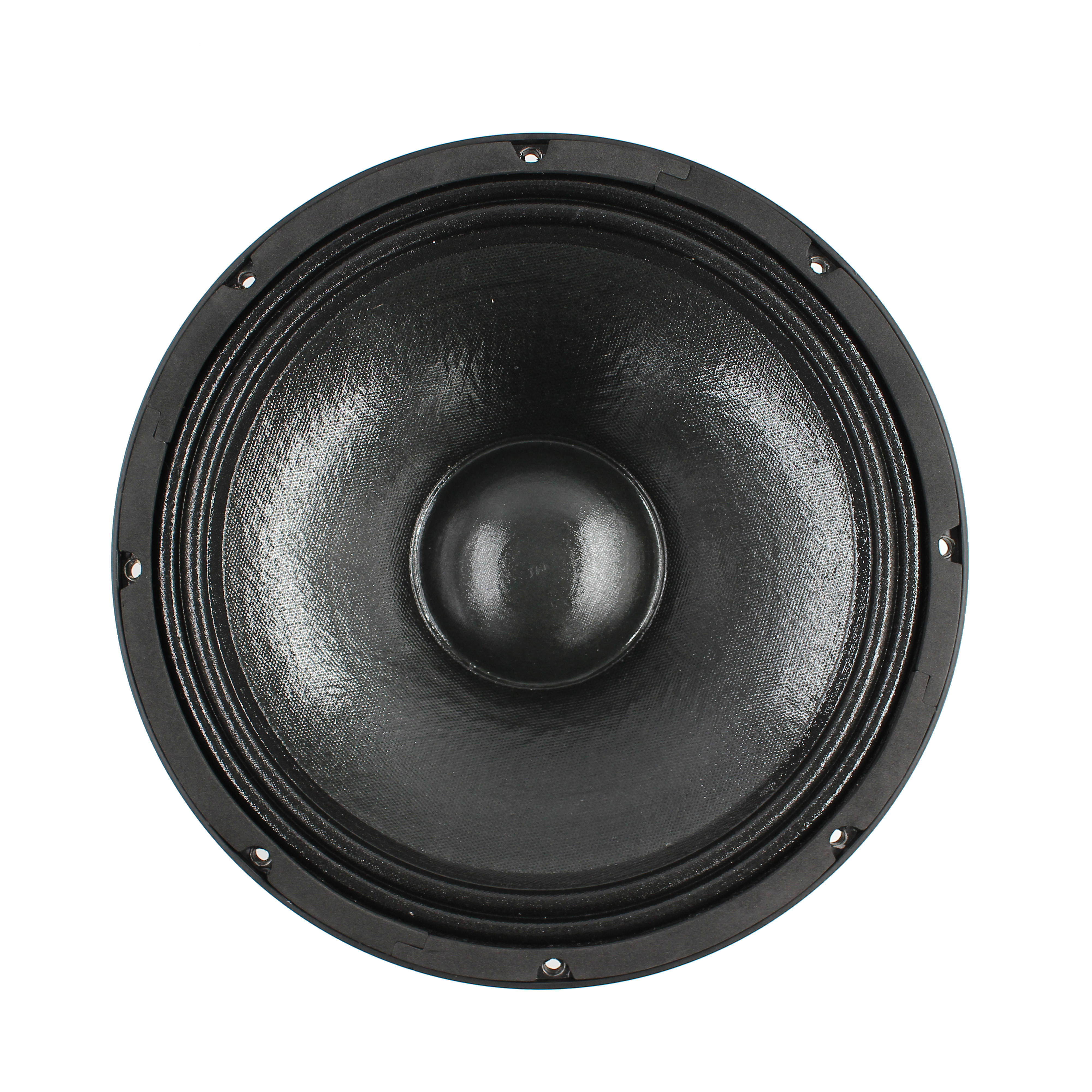

Cone Material |
Pulp Paper |
|
Overall Diameter |
320mm |
|
Baffle Cutout Diameter |
278.5mm |
|
Mounting Holes |
8 holes ∅ 302mm |
|
Total Depth |
140mm |
